Portable Mobile Visibility Monitoring Station (ASHUR-VPS)

1. Product Overview of Portable Mobile Visibility Monitoring Station

ASHUR-VPS portable mobile visibility monitoring station has many advantages such as compact structure, light weight, portability, anti-vibration, easy installation and low power consumption. It is suitable for portable or mobile carrier applications and can quickly conduct real-time and continuous monitoring of near-ground visibility. . The portable mobile visibility monitoring station can transmit visibility data information to the background observation software in real time through wired or wireless communication. The mobile visibility monitoring station can be widely used in vehicle-mounted, ship-mounted, portable observation and other fields.

2. Characteristics of Portable Mobile Visibility Monitoring Stations

a) Compact and portable, anti-vibration, high reliability, easy to use and maintain;

b) The unique down-tilt structure design can effectively prevent dust, rain and snow pollution, and interference from vehicle lights to ensure measurement performance;

c) The internal precision algorithm ensures the accuracy of fog, smoke, haze, and dust measurements, and also ensures the effectiveness of snowfall measurements;

d) Low power consumption design, less than 1.5W. After long-term operation test, the instrument works stably and reliably.

3. Product Composition of Portable Mobile Visibility Monitoring Station

The portable mobile visibility monitoring station and observation system mainly consists of the following parts:

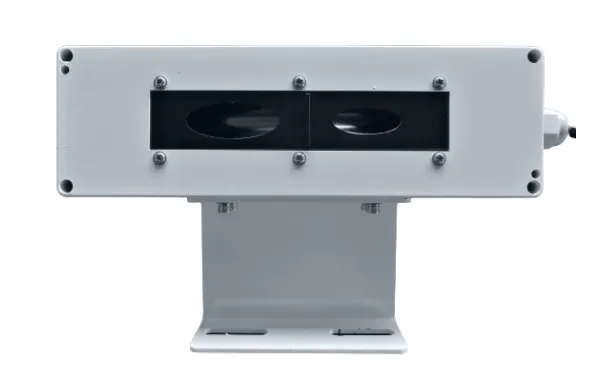

a) Miniaturized visibility detector;

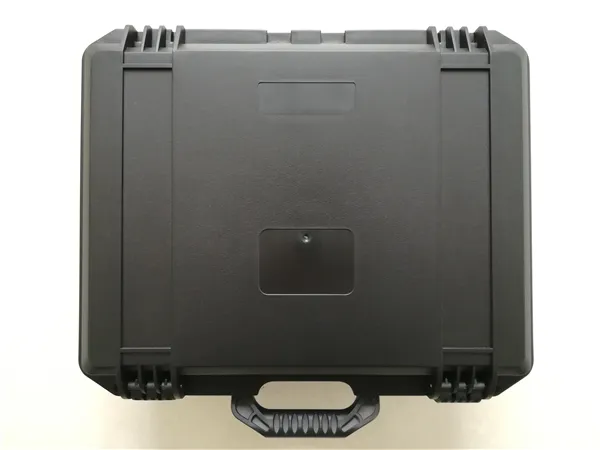

b) Portable packaging box;

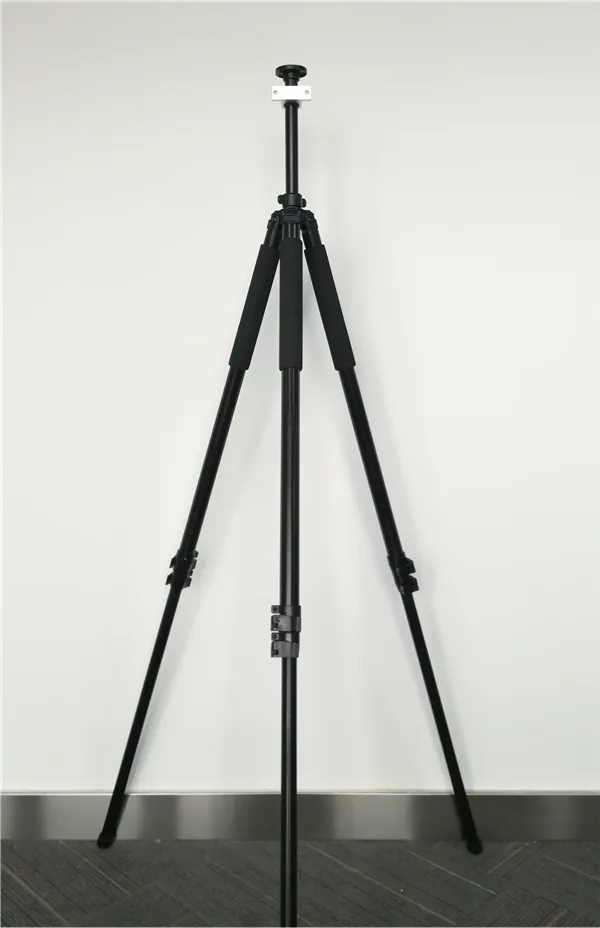

c) Portable tripod;

d) Power supply/communication cables;

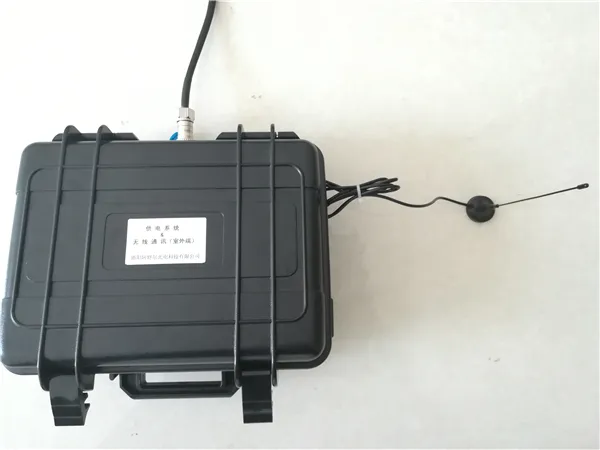

e) Wireless or wired communication system;

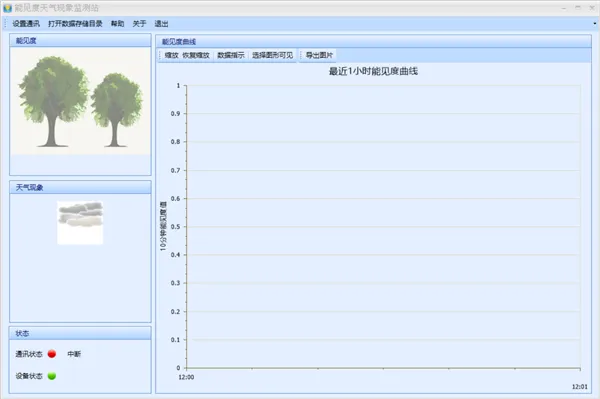

d) Visibility observation software.

4. Main Technical Indicators

Measuring range: 5m～2km (can be extended to 5km);

Measurement accuracy: ≤500m, error ±10%;

500m～2km, error ±15%;

Resolution: 1m;

Instrument consistency: ≤±4%;

Update interval: 60 seconds;

Dimensions (length x width x height): 250mm x 165mm x 80mm;

Weight: less than 3kg;

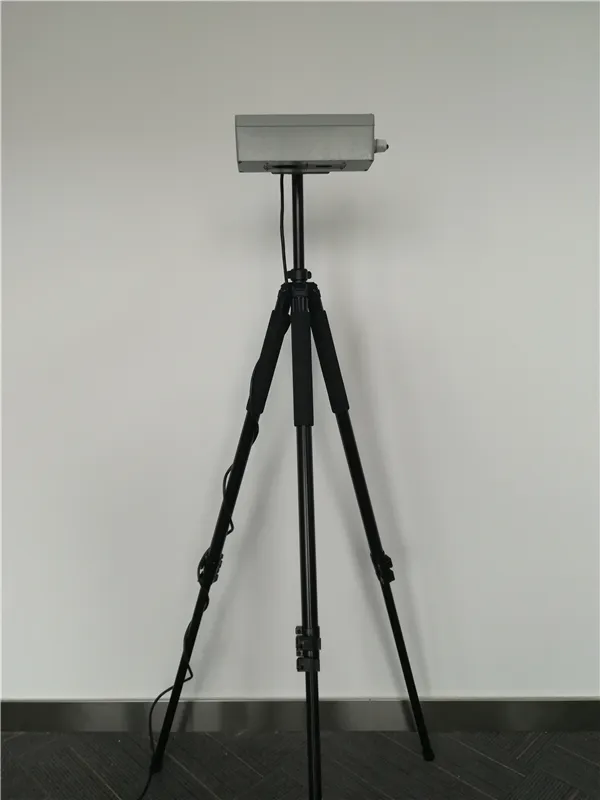

Installation: Installed on an already erected portable stand (tripod);

Material: Anodized hard aluminum alloy, with spray paint protection on the outer surface;

Power supply: rated DC 12VDC, 11~16VDC input range;

Power: Less than 1.5W;

Working environment temperature: -40～+60℃;

Working relative humidity: 0～100%RH;

Regional adaptability: It can be adapted to long-term use in the wild, desert, Gobi environment or coastal climate conditions.
