1. Mobile Visibility Monitoring Station Overview
ASHUR mobile visibility monitoring station has many advantages such as compact structure, portability, easy installation and low power consumption. It is suitable for portable or mobile carrier applications and can quickly conduct real-time and continuous monitoring of near-ground visibility. The monitoring station can transmit visibility data information to the background observation software in real time through wired or wireless communication, and can be widely used in vehicle-mounted, ship-mounted, portable observation and other fields.
2. Mobile Visibility Monitoring Station Features
a) It can conduct real-time, online, continuous monitoring of atmospheric visibility and make judgments on real-time weather conditions (can judge rainfall, snowfall, rain-snow mixture and other weather conditions)
b) Portable, high reliability, easy to use and maintain;
c) The unique down-tilt structure design can effectively prevent dust, rain and snow pollution, and interference from vehicle lights to ensure measurement performance;
d) The internal precision algorithm ensures the accuracy of measurement in environments such as fog, smoke, haze, and dust;
e) Low power consumption design, less than 1.5W. After long-term operation test, the instrument works stably and reliably.
3. Product Composition
The movable visibility monitoring station and observation software mainly consist of the following parts:

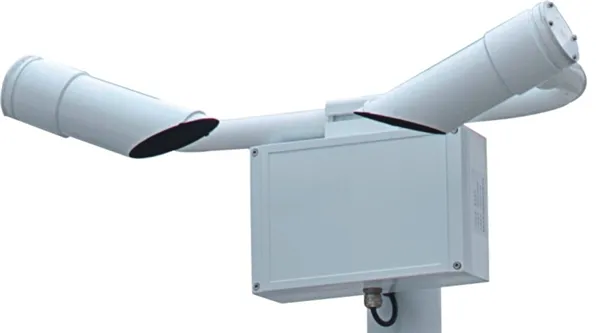

a) ASHUR-VD920 series visibility detector or ASHUR-VD930 series visibility weather phenomenon detector;
b) Special packaging box;

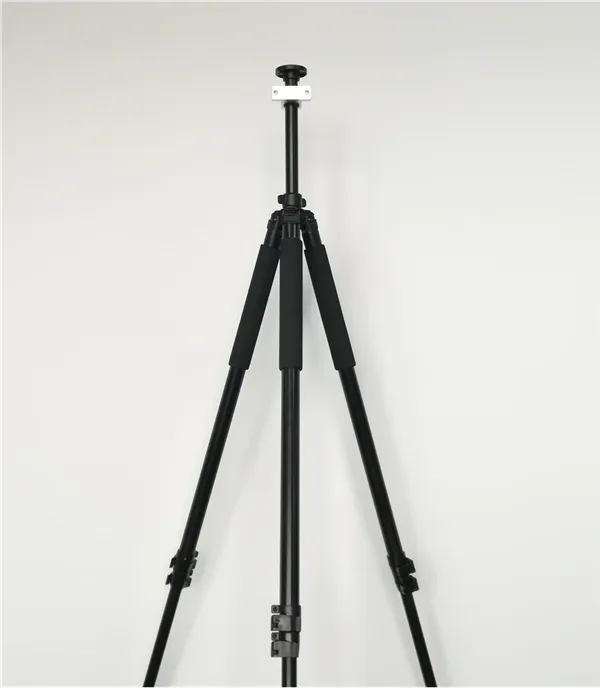

c) Portable tripod;
d) Power supply/communication cables;
RS232/485 wired communication. Configure cables of a certain length according to the needs of users for outdoor detection activities.

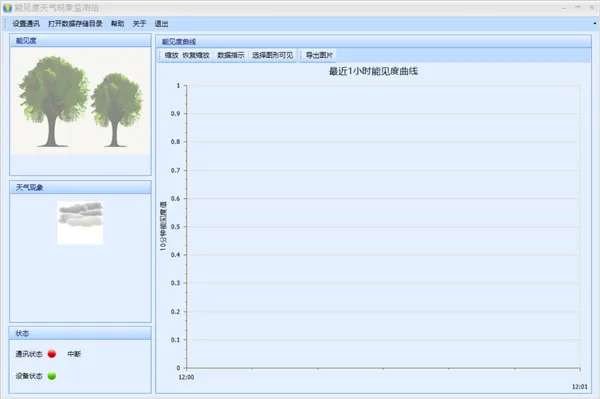

e) Visibility observation software.
Measuring range: 5m-10km (can be extended to 80km);
Measurement accuracy: ≤2km, error ±2%
2km—10km, error ±5%
>10km, error ±10%
Resolution: 1m;
Instrument consistency: ≤±4%;
Update interval: 60 seconds;
Weather phenomenon measurement types: fog, rain, snow, mixed precipitation
Recognition rate: greater than 90%
NWS weather code identifiers that can be output (as shown in the table below).
Exportable NWS Weather Code Identification | |
Output Weather Code | NWS Code Description |
R- | Light rain |
R | Moderate rain |
R+ | Heavy rain |
S- | Light snow |
S | Moderate snow |
S+ | Heavy snow |
P- | Small mixed precipitation |
P | Medium mixed precipitation |
P+ | Strong mixed precipitation |
F- | Light mist |
F | Fog |
F+ | Dense fog |
C | No precipitation |
Weight: Less than 10kg;
Installation: Installed on an already erected portable stand (tripod);
Material: Anodized hard aluminum alloy, with spray paint protection on the outer surface;
Power supply: rated DC 12VDC, 11~16VDC input range;
Power: Less than 1.5W;
Working environment temperature: -40~+60℃;
Working relative humidity: 0~100%RH;
Regional adaptability: It can be adapted to long-term use in the wild, desert, Gobi environment or coastal climate conditions.
