Vehicle Visibility Monitoring System

1. Vehicle Visibility Monitoring System Overview

The vehicle-mounted visibility monitoring system has many advantages such as compact structure, convenient installation and low power consumption. It is suitable for mobile carrier applications and can quickly conduct real-time and continuous monitoring of near-ground visibility. The monitoring station can transmit visibility data information to the background observation software in real time through wired or wireless communication, and can be widely used in vehicle-mounted, ship-mounted and other fields.

2.Characteristics

a) Real-time, online and continuous monitoring of atmospheric visibility can be carried out;

b) High reliability, easy to use and maintain;

c) The unique down-tilt structure design can effectively prevent dust, rain and snow pollution, and interference from vehicle lights to ensure measurement performance;

d) The internal precision algorithm ensures the accuracy of fog, smoke, haze, and dust measurements, and also ensures the effectiveness of snowfall measurements;

e) Low power consumption design, less than 1.0W. After long-term operation test, the instrument works stably and reliably;

f) The instrument can be set with an ID number to identify its identity, which facilitates visibility network observation applications;

g) The window lens has undergone special coating treatment, which can effectively prevent pollution and corrosion, and has anti-fogging and heating defrosting functions.

3.Composition

In-vehicle visibility monitoring system consists of:

a) Visibility detector;

b) Roof mounting bracket:

c) Observation software.

4. Main Technical Indicators

1) Measurement indicators

Measuring range: 5m—2km (can be expanded to 10km)

Measurement accuracy: 5m—2km, error ±5%

Instrument consistency: ≤±4%

Data update interval: 60 seconds

2) Electricity index

Power supply: DC 12VDC

Power: less than 1.5W

3) Environmental adaptability

Working environment temperature: -40℃—+60℃

Working relative humidity: 0-100%RH

Regional adaptability: It can be adapted to long-term use in the wild, desert, Gobi environment or coastal climate conditions.

5.Application Examples

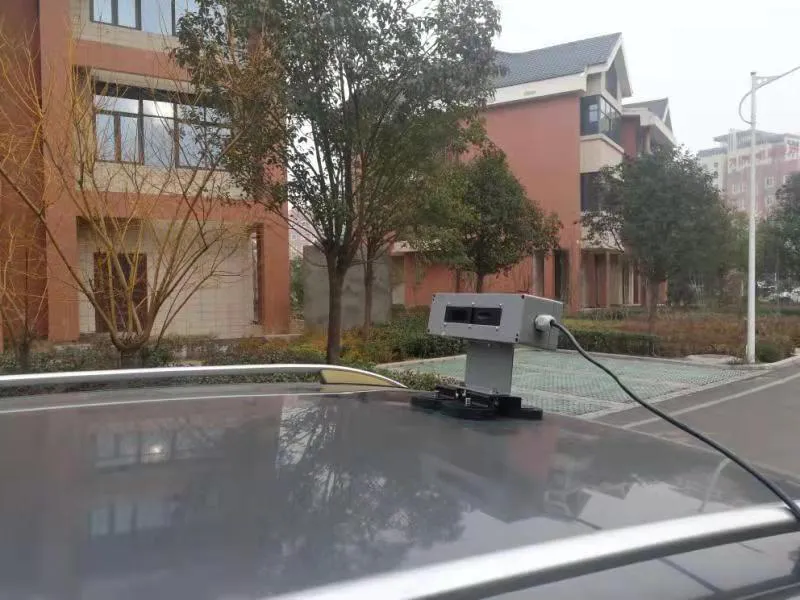

Real shots of vehicle visibility monitoring system
