Laser Raindrop Spectrometer Weather Phenomenon meter (DP 900 Series)
Category : Weather Sensor
Release Date : 2024-03-26 06:26:46

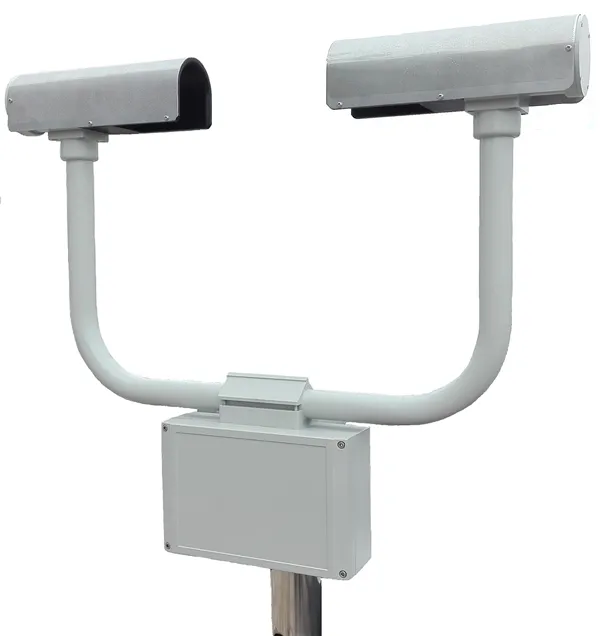

1. Product Appearance of Laser Raindrop Spectrometer
2. Product Overview of Laser Raindrop Spectrometer
The laser raindrop spectrometer is a high-tech laser technology product that uses the principle of laser active detection to continuously observe the size, speed and quantity of precipitation particles, thereby deducing particle size distribution, precipitation amount, precipitation type, and visibility. , radar scattering factor dBz value, etc., the laser raindrop spectrometer can distinguish drizzle, rain, sleet, hail, snow and mixed precipitation.
3. Functions and Characteristics of Laser Raindrop Spectrometer
1) The laser raindrop spectrometer adopts laser detection technology, uses two-dimensional particle size and velocity distribution to analyze the complex precipitation process, quickly and accurately detects the number, particle size, falling speed, etc. of precipitation particles, and can deduce the precipitation drop spectrum, precipitation Type, precipitation intensity, radar reflectivity, etc.;
2) The U-shaped structure design and the splash-proof design of the laser transmitter and receiver reduce the probability of raindrop splashing, effectively ensuring the quality of observation data;
3) The laser raindrop spectrometer uses a 650nm short-wavelength laser, which is more conducive to the detection of small particles and has higher measurement sensitivity;
4) Lightweight hard aluminum alloy closed shell, maintenance-free for long-term use in the field, protection level reaches IP67;
5) The high-performance system and low-power consumption design enable the equipment to be deployed in the field at low cost and conveniently, effectively reducing equipment construction and maintenance costs.
4. Application Fields of Laser Raindrop Spectrometer
1) Urban flood monitoring station
2) Mainly used in transportation, hydrology, meteorology, water conservancy and other fields
3) High-resolution area rainfall radar automatic monitoring system
5. Typical Technical Indicators of Laser Raindrop Spectrometer
Measurement Standard |
|
Detection Area |
Greater than 50cm² |
Particle Size |
The diameter of liquid precipitation particles is 0.2-5mm
|
Speed |
0.2—20 m/s |
Precipitation Particle Size Distribution |
Level 32 particle diameter size and level 32 falling speed |
Radar Reflectivity |
-9.999—99.999dBz,±15% |
Precipitation Intensity |
0.001—1200 mm/h |
Precipitation Accuracy |
±5% (liquid); ±20% (solid) |
Precipitation Types and Meteorological Codes |
Drizzle, rain, snow, sleet, hail, etc., WMO 4677 (SYNOP) 4680 (METAR) and NWS codes can be provided; |
Data Update Rate |
20s-300s adjustable |
Data Output Mode |
It has active upload mode and passive query mode; in passive query mode, the data format compatible with commonly used international drop spectrometers can be set to facilitate user use. |
Interface |
RS232/RS485, baud rate adjustable |
Protection Level |
IP67 |
Power Indicators |
|
Power Supply |
9~36VDC, typical 12VDC, suitable for solar power supply |
Power Consumption |
Intelligent heating working mode, power consumption is less than 1.5W without rain, and peak power is less than 5.5W with rain |
Environmental Adaptability |
|
Working Temperature |
- 40—+80℃ |
Working Relative Humidity |
0—100%RH |
Geographical Adaptability |
Continuous work in outdoor areas |
