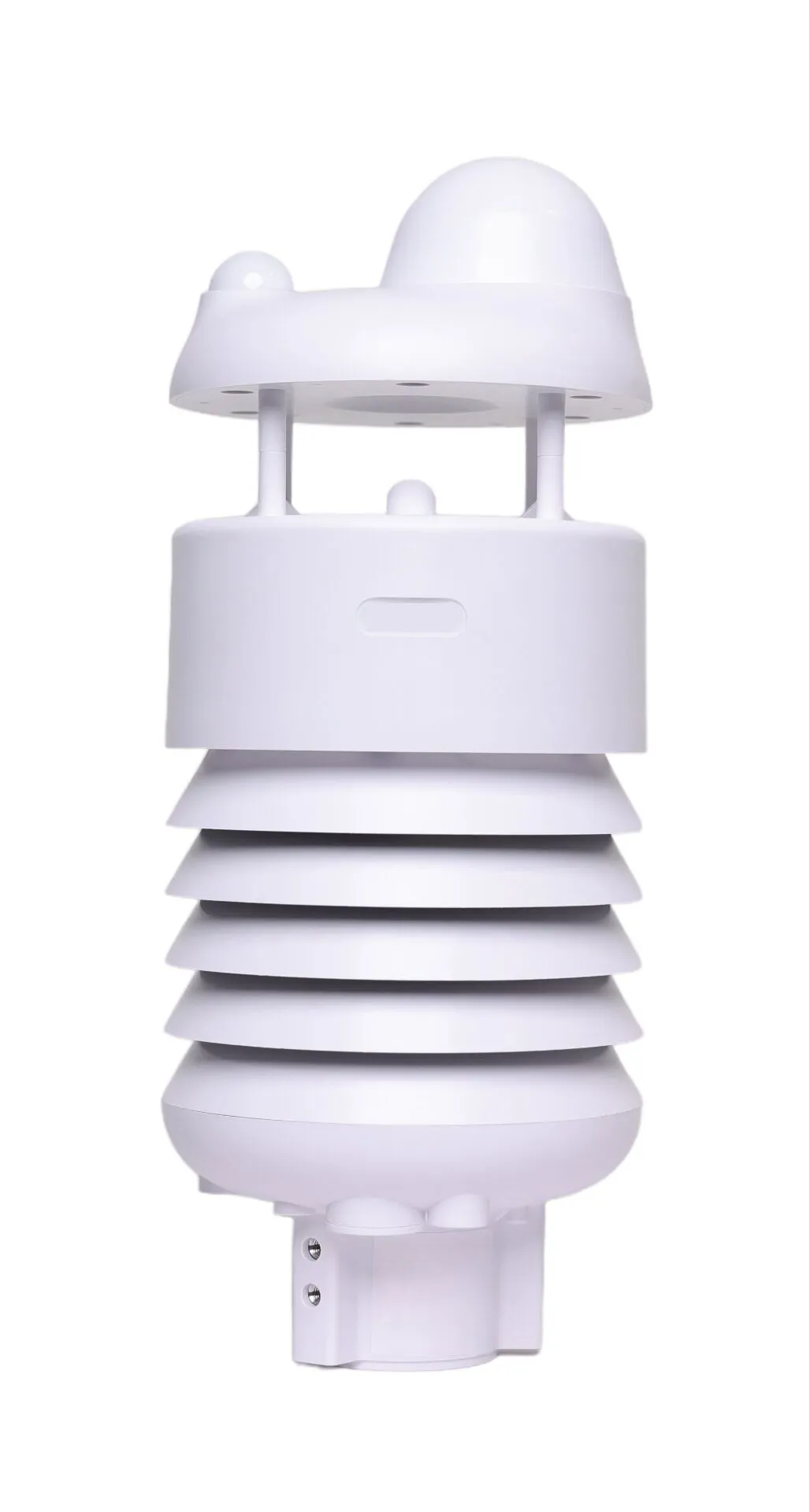

Micro Ultrasonic Automatic Weather Station (MWS 600 Series)
Category : Weather Sensor
Release Date : 2024-03-26 06:18:10
Micro Ultrasonic Automatic Weather Station: High-precision Weather Monitoring Solution
1. Product Overview of Micro Ultrasonic Automatic Weather Station
The Micro Ultrasonic Automatic Weather Station is a high-tech meteorological monitoring equipment specially designed to measure key meteorological parameters in real time and accurately. This sensor can measure six major meteorological elements, including atmospheric temperature, humidity, wind speed, wind direction, air pressure and rainfall, covering the core needs of meteorological monitoring. It is particularly worth mentioning that the temperature, humidity and air pressure are measured using industry standard probes, which are placed in a special radiation shield to ensure the accuracy and reliability of the data.
This miniature ultrasonic automatic weather station is a multi-functional, high-efficiency, easy-to-maintain weather monitoring equipment. Its high-precision detection and rugged design make it ideal for use in multiple fields including environmental monitoring, smart transportation, and urban infrastructure management. This device can not only provide accurate meteorological data, but also operate stably in various environments. It is the most popular meteorological monitoring solution on the market today.
2. Functions and Characteristics of Micro Ultrasonic Automatic Weather Station
1) All-round monitoring capability: This equipment can monitor six key meteorological elements in real time and provide comprehensive climate monitoring data.
2) Sturdy and durable design: Its integrated design is not only sturdy and durable, but also easy to install. This design enables stable operation in a variety of weather conditions and has no moving parts, enabling maintenance-free operation.
3) High-precision detection: The equipment has high detection accuracy and fast response time, ensuring the real-time and accuracy of data.
4) Advanced measurement technology: The measurement of wind speed and wind direction is based on the principle of ultrasonic time difference, while the measurement of rainfall uses microwave radar technology. The application of these advanced technologies allows the equipment to quickly and accurately detect rainfall and rainfall intensity.
3. Application Fields of Micro Ultrasonic Automatic Weather Station
Micro ultrasonic automatic weather stations are widely used in many fields due to their versatility and high accuracy:
1) Environmentally friendly air monitoring station: Provide key meteorological data support in air quality monitoring.
2) Intelligent transportation system: Provide timely meteorological information for traffic management and enhance traffic safety and efficiency.
3) Intelligent street light control: intelligently adjust the brightness of street lights according to weather conditions to improve energy efficiency.
4) All-factor traffic weather monitoring station: Provide comprehensive data support for traffic weather monitoring, especially under severe weather conditions.
4. Main Technical Parameters of Micro Ultrasonic Automatic Weather Station
Technical Parameters |
Signal output |
RS232/RS485 |
Power requirements |
VDC:12V-24V |
|
Data update |
1s (Adjustable) |
|
Operating power |
Less than 3W (Heating 6W) |
|
Material |
ABS |
|
Dimensions |
Ø144 * 248mm |
|
Atmospheric Temperature |
Detection principle: energy gap temperature measuring element |
|
Atmospheric Humidity |
Detection principle: capacitive polymer moisture measurement |
|
Atmospheric Pressure |
Detection principle: capacitive MEMS sensor |
|
Wind Speed |
Detection principle: ultrasonic |
|
Wind Direction |
Detection principle: ultrasonic |
|
Rainfall |
Detection principle: microwave radar Measuring range: 0-10mm/min Resolution: 0.01mm |
