Visibility Sensor (ASHUR-VD930 Series)
Category : Weather Sensor
Release Date : 2024-03-26 01:56:55

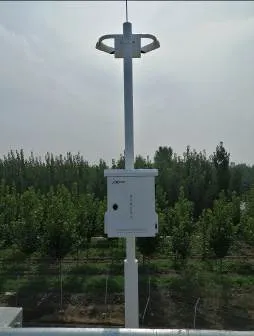

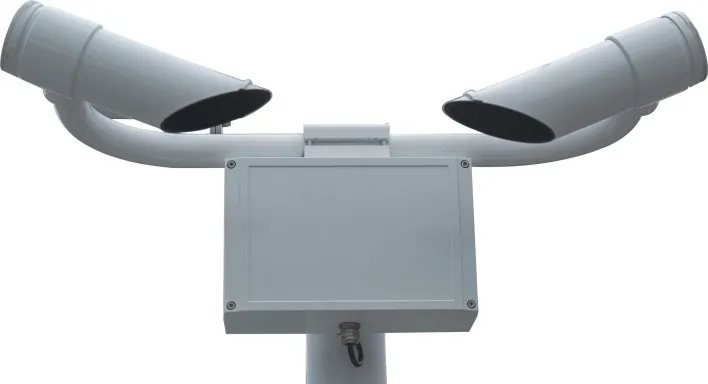

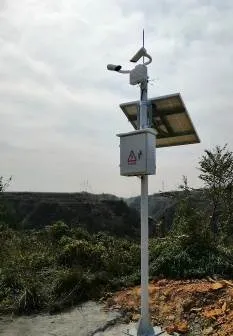

1. Appearance of Visibility Sensor Product
2. Overview of Visibility Sensor Products
Visibility sensors (visibility meter weather phenomenon detectors) provide measurements related to meteorological visibility, rainfall, snowfall and mixed precipitation, etc., and are widely used in weather stations, remote automatic weather stations, and traffic safety in airports, highways, waterways, large ships, etc. field.
3. Functions and Characteristics of Visibility Sensors
1) Real-time, online and continuous monitoring of atmospheric visibility;
2) Digital output interface: RS-232 or RS-485;
3) Ability to automatically determine visibility change trends and monitor its own working status;
4) The power consumption is less than 1W, and it can adapt to a variety of power supply methods to facilitate system integration;
5) In order to ensure the long-term stability of the collector, a watchdog circuit is built-in;
6) It is equipped with lightning protection measures, and its communication interface and power interface are designed with lightning protection.
4. Application Fields of Visibility Sensors
1) Intelligent traffic weather sensing system
2) Intelligent street light control system
3) Visibility monitoring system for highway fog areas and severe weather environments
4) Variable speed limit system in bad weather conditions
5. Typical Technical Indicators
Measurement Standard |
|
Measuring Range |
ASHUR-VD930A type: 5m-10km |
ASHUR-VD930B type: 5m—30km |
|
ASHUR-VD930C type: 5m-80km |
|
Measurement Accuracy |
≤2km, error ±2% |
2km—10km, error ±5% |
|
>10km, error ±10% |
|
Weather Phenomenon Measurement Types |
Fog, rain, snow, mixed precipitation, no precipitation, etc. |
Recognition Rate |
Greater than 95% |
Instrument Consistency |
≤±4% |
Data Update Interval |
15 seconds, 60 seconds (default) |
Power Indicators |
|
Power Supply |
DC 12VDC |
Power |
Less than 1W |
Mechanical Indicators |
|
Dimensions (Length x Width x Height) |
610mm x 230mm x 360mm |
Weight |
Less than 10kg |
Installation |
Installed on an already erected circular column |
Material |
Anodized hard aluminum with spray paint protection on the outer surface |
Environmental Adaptability |
|
Working Temperature |
-40—+60℃ |
Working Relative Humidity |
0—100%RH |
Geographical Adaptability |
Continuous work in outdoor areas |
Exportable NWS Weather Code Identifiers
Output Weather Code |
NWS Code Description |
R- |
Light rain |
R |
Moderate rain |
R+ |
Heavy rain |
S- |
Light snow |
S |
Moderate snow |
S+ |
Heavy snow |
P- |
Small mixed precipitation |
P |
Medium mixed precipitation |
P+ |
Strong mixed precipitation |
F- |
Light mist |
F |
Fog |
F+ |
Dense fog |
C |
No precipitation |
